Description

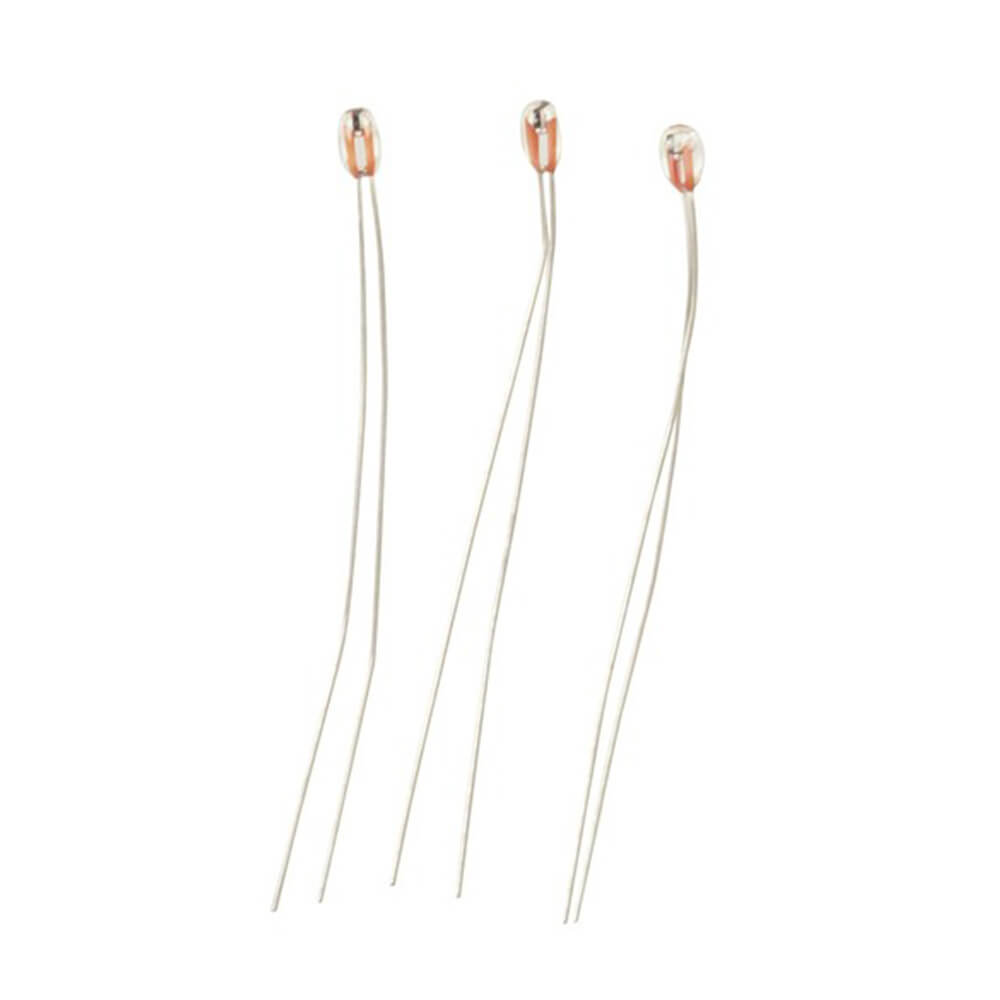

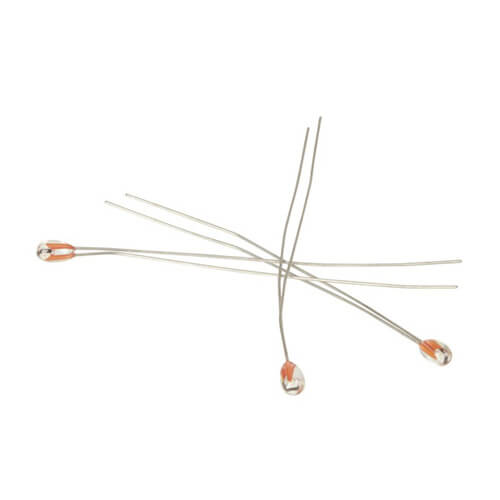

This high temperature NTC thermistor is suitable for operation up to 250 degrees, and is compatible with the hot-end thermistors used in many 3D printers.
Features:
Sealed glass body with small bead for fast response
Product Specifications
- Height : 4.1mm
- Diameter : 1.7mm
- Packaged Volume : 0l
- Packaged Weight : 0kg
- Packaged Length : 3cm
- Packaged Width : 0.1cm
- Packaged Height : 0.1cm
- Temperature Coefficient : Negative (NTC)
- Resistance at 25DegC ±10% : 100kΩ
- Thermistor Temperature Range : -40DegC, 250DegC
- Thermal Dissipation Constant : 1mW/DegC
- Component Type : Thermistor
- Pack Quantity : 1pc
- Passive mount type : Through Hole
- Passive connector type : Solder Legs
- Passive number of legs : 2 count
- Nominal Leg Length : 30mm
| Length : 3 cm | Width : 0.1 cm |
| Height : 0.1 cm |
